Hire a Mini Spider Crane and Operator from Dales Water Services Ltd.

Tight on space but still need heavy lifting power? Our URW-295 spider cranes are available to hire across the North of the England.

Whilst slender enough to fit through a standard door frame, this state of the art mini crane can still lift up to 2.9 tonnes; making it perfect for sites where space or access is at a premium. The URW-295 blends design, efficiency, work-ability and manoeuvrability which result in a crane that can carry out a wide range of lifting jobs. Whether it’s lifting a pre-made garden building over a fence or erecting steel in a tricky location the URW-295 can do the job efficiently and safely.

Dales Water Crane Hire

Typical Applications for Our Mini Cranes

A tracked spider crane can operate in areas where space is extremely restricted.  The tracked designs means they are perfect for moving across difficult terrain and setting up where ground is uneven. The lightweight and compact design of our spider mini cranes makes them ideal for being moved in construction lifts and working on low load-bearing floors. At only 60cm wide they are narrow enough to fit through a standard door frame. Some typical uses include:

  • Steel erection
  • All construction related lifting jobs
  • Restoration projects
  • Cladding installation and repairs
  • Simple lifting jobs in tight spaces – over garden fences, garages etc.
  • Plant maintenance
  • Railway maintenance
  • Glazing
  • Working on high rise buildings
  • Repair works inside factories
  • Heavy borehole pump removal and installation

About the URW-295 Spider Crane

The URW295 Mini Spider crane is currently the leading compact crane on the market. With a continuous rotation of 360 degrees and a maximum lifting capacity of 2.9t  (6500lbs) the crane is extremely versatile. Adjustable outriggers give a variable geometric footprint meaning it can be set-up in tight spots such as rooftops and small factories. As an added feature, the URW295 model comes equipped with a wireless radio remote control system; freeing the operator from being tied to the crane for virtually unlimited positioning.

  • 2.9 tonne x 1.4m capacity
  • Total width: 0.6m
  • Max working radius 8.41m
  • Max boom length 8.65m
  • Petrol powered with LPG for indoor use
  • Operator control of outrigger extensions
  • Radio remote control
  • Built in safety features with voice warning system
Dales Water Crane Hire

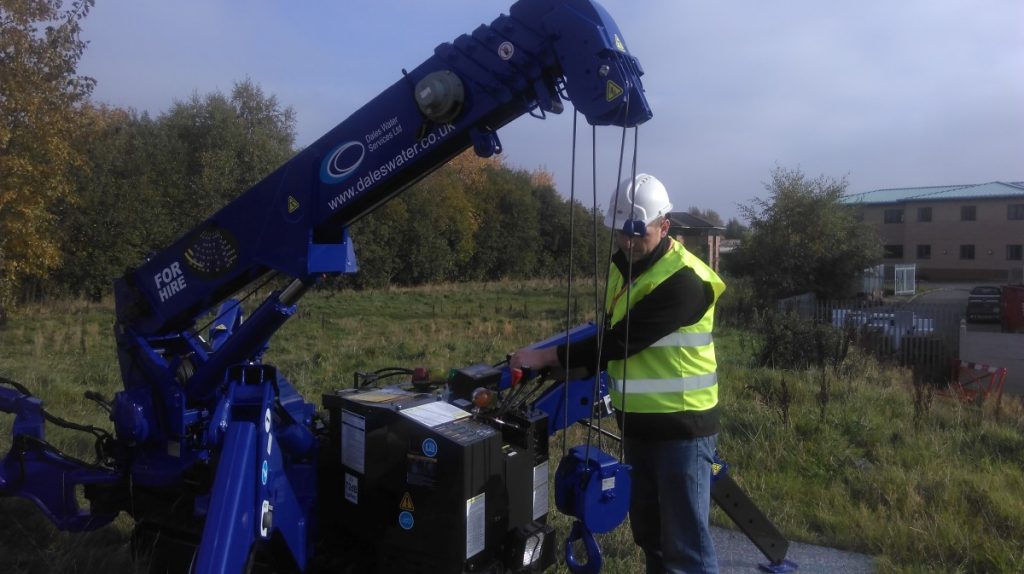

What You Get With Our Mini Crane Hire Service

Our CPA mini crane hire service gives you access to a mini spider crane and an operative who has received in depth training on how to use the crane safely.

  • A CPA service with a URW-295 spider crane
  • Crane delivered to your site by our trained operatives on a trailer.
  • Dedicated crane operator who has received specific training on how to use the crane safely.

Areas We Cover

We cover the vast majority of the North of England and some areas in Scotland. If your locality isn’t listed below drop us an email and we’ll let you know if we can help.

  • Harrogate
  • Ripon
  • Leeds
  • York
  • Bradford
  • Newcastle, Middlesbrough and Tyne & Wear areas
  • Yorkshire Dales
  • North Yorkshire
Why Choose Us

Why Choose Us?

Dales Water Services are first and foremost private water supply engineers. Our team work on both industrial and domestic sites that require lifting applications all year round. Because we use mini cranes to help complete our own projects, we’re well placed to know their benefits, limitations and how to get the most out of them in a wide range of situations. It doesn’t matter what you want to lift be it building materials, machinery or sheet plastic, we have the solution.

When you hire a mini crane from Dales Water, you get the best equipment but more importantly the operatives that know how to use it safely and effectively.

  • Trained operatives
  • Extensive knowledge working on construction sites, roadside, rail tracks and domestic properties
  • Heavily invested and committed to health and safety


Prices start from £400.00 per day (ex. VAT) with a trained operative. If you’d like to get a quote give us a call on 01765 640 646 email cranes@daleswater.co.uk or fill out the quotation form below. We aim to respond to all enquiries within 1 working day. Please note a mileage charge may apply over a 50 mile radius from our head office in Melmerby, Ripon. Our terms and conditions of hire apply.

Technical Specifications

Crane Capacity 2.9t x 1.4m
Max Working Radius 8.41m
Max Lifting Height 8.8m (9.8m with fly jib, 10.47m with fixed hook)
Rope Length 14.12m (4 fall), 29.24m (2 fall), 59.47m (1 fall)

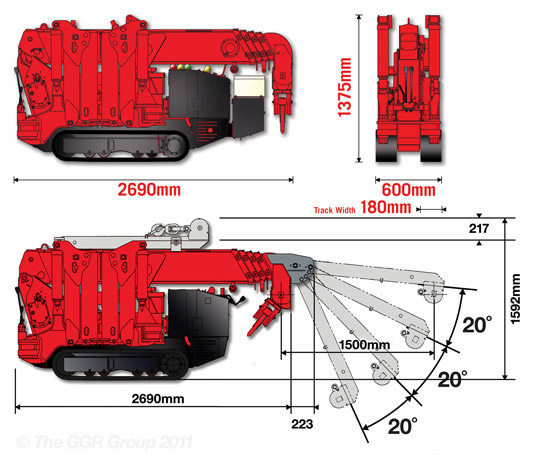

Dimensions When Folded 2690mm (2905mm diesel & electrical dual) (l) x 600mm (w) x 1375mm (h)
Weight 1850kg
Hook Speed 10m/min (with 4 layers and 4 falls)
Boom Length 2.53 – 8.65m
Telescoping Speed 6.12m/20 seconds
Boom Type 5 section hydraulically telescoping boom, hexagonal box construction
Derricking Angle / Speed 0 – 78˚/11 seconds
Slewing Angle / Speed 360˚ (continuous) 1.5min rpm
Traction hydrostatic, stepless forward and reverse
Travel Speed 0 – 2.3km/h
Gradability 20
Track Ground Length 1050mm
Track Ground Pressure 48kPa (0.49kg/cm²)
Track Width 180mm
Fuel 6 litre petrol tank with LPG option
Other Features computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning alarms, overload warning lamps, working area limitation
Boom Stages
Fall Stages
Outrigger Specs

What Some Of Our Existing Crane Hire Customers Have To Say

We needed a spider crane to move some heavy building materials into our garden and access was tight. We used Dales Water after a recommendation and the service was fantastic. Saved us from having to tear down our fencing! Thanks.
M. Brailsford, Domestic Property
We are extremely happy to recommend Dales Water – we have used them on a number of occasions over the last 10 years and have always found them to be professional and supportive at all times. Service has been excellent.
Engineering Team, Water Brands Group
We have used Dales Water’s spider cranes in our parks for a number of jobs. From initial enquiry with them, I have found them to be reliable, professional and creative in delivering the exact solutions for our needs.
J. Morphet

Tell Us About Your Mini Crane Hire Requirements

If you’re interested in hiring one of our mini cranes and require some more information or would like us to give you a quote please fill out the form below or email cranes@daleswater.co.uk. You can also call us on 01765 640 646 during normal working hours.

    Your Name*

    Email Address*

    Contact Number

    How Can We Help?*

    A member of our team will get back to you as soon as possible. We aim to answer all crane hire enquiries within 24 hours.
